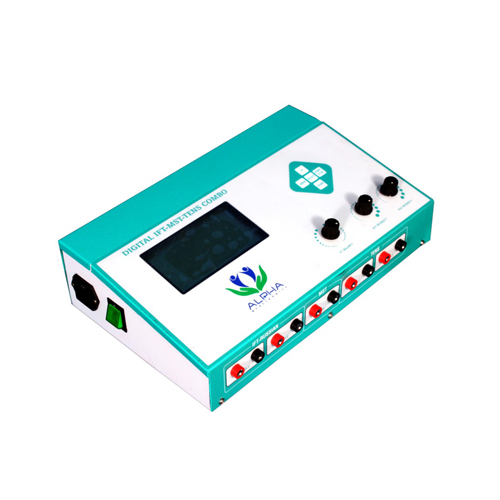

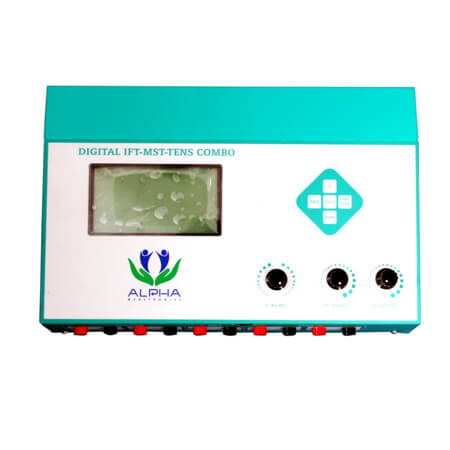

Digital IFT-MST-TENS Combo
Digital IFT-MST-TENS Combo - Image 2
Digital IFT-MST-TENS Combo - Image 3

Digital IFT-MST-TENS Combo

To Buy
Download Brochure

Digital IFT-MST-TENS Combo is a unique system for physiotherapy applications. Integrates multiple therapies in one unit for efficient and reliable treatment.

FEATURES

  • Usage of two modalities with individual timer is possible
  • Feather-touch keypad
  • 150 therapeutic-library programs
  • Graphical LCD display (240 x 128)
  • SMPS powered
  • Equipped with “ARM” microcontroller
  • Cable check facility
  • 30 configurable Favorites memory location
  • Individual ON-OFF control for all modalities
  • Stand alone Start/Stop switch for output control
Category:

Description

SPECIFICATIONS

IFT

Mode 4P, 4PV, 2P & Russian Current
Frequency 2, 3, 4, 5, 6, 7, 8, 9 & 10 kHz
Base 1–150 Hz, 1 Hz step
Spectrum 1–150 Hz, 1 Hz step, LIN, NL & TRP shape
Vector Type 2PL, 4PL, 4PT & 4PNL
Output Isolated 0–98 mA

MST

Modes FAR, SFAR, GAL, IG, U-Reiz, HVPC & Micro Current
FAR 0.7 ms ON time @ 20 ms period
SFAR HOLD & REST: 1–12 sec (adjustable)
GAL Plain DC
IG ON: 0.01 ms to 1000 ms, REST: 1–12 sec (adjustable)
U-Reiz 2 ms ON time @ 7 ms period
HVPC 10 Hz to 120 Hz with 10 Hz step
Micro Current 10 Hz to 1 kHz with 10 Hz step
Output 0–99 mA, adjustable

TENS

Mode Continuous & Burst
Frequency 1 to 250 Hz @ 10–400 µs pulse width (adjustable)
Burst 1–12 sec HOLD & REST (adjustable)
Output 0–99 mA, adjustable and isolated
Timer 1–30 minutes, adjustable
Input Power SMPS @ 150–275V AC, 50 Hz
Dimensions 310 × 220 × 90 mm
Weight 2.65 kg
