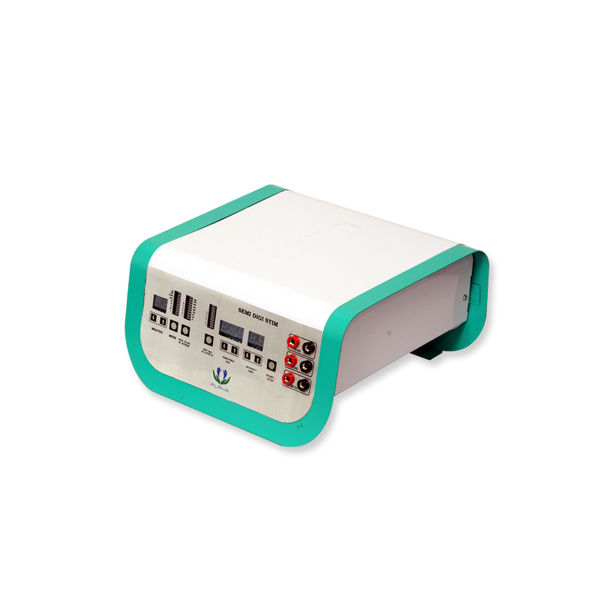

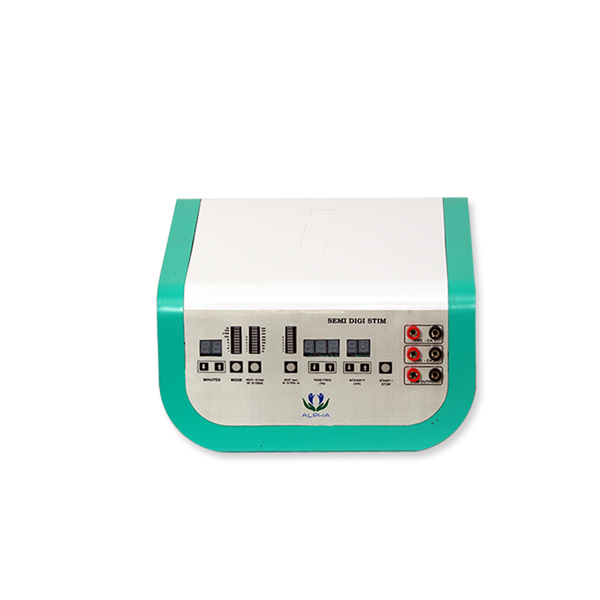

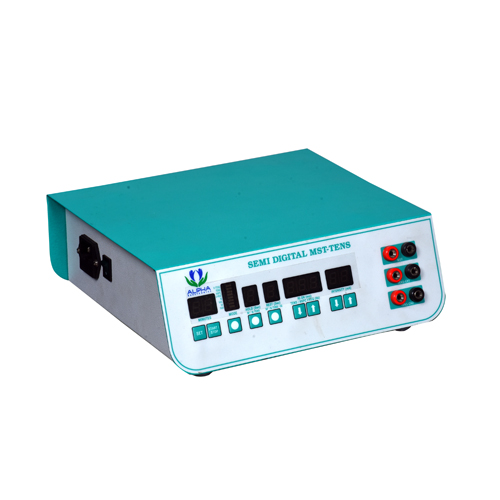

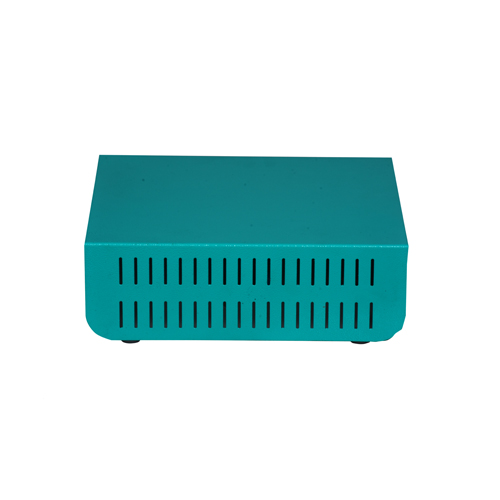

Semi Digital MST – TENS

To Buy
Download Brochure

Semi Digital MST – TENS is the next segment machine to the conventional analog machine which comes with an advanced micro controller to manage entire operation like output drive, timer, intensity control/indication and modes of the machine hence brings accuracy in its performance. Traditional potentiometer & rotator knobs are replaced with feather touch keys, LED bar graph and seven segment displays.

FEATURES

  • 8 therapeutic currents offered
  • SMPS powered
  • Stand alone Start/Stop switch for output control
  • Treatment cycle and other parameters are configurable
  • Equipped with “ARM” microcontroller
  • User friendly 7 segment display, Bar Graph LED and Feather-touch Keys as user interface
Category:

Description

SPECIFICATIONS

Modes Faradic, Surge Faradic, Galvanic, Interrupted Galvanic, U-Reiz, HVPC, Continuous & Burst TENS

MST

FAR 0.7 ms ON time @ 20 ms period
SFAR HOLD & REST: 1–9 sec (adjustable)
GAL Plain DC
IG ON: 0.01 ms to 1000 ms, REST: 1–9 sec (adjustable)
U-Reiz 2 ms ON time @ 7 ms period
HVPC 10 Hz to 120 Hz with 10 Hz step
Timer 1–30 minutes, adjustable
Input Power SMPS @ 100–275V AC, 50 Hz
Dimensions 270 × 250 × 90 mm
Weight 2.1 kg

TENS

Mode Continuous & Burst
Frequency 1 to 250 Hz @ 400 µs pulse width
Burst 1–9 sec HOLD & REST (adjustable)
Output 0–99 mA, adjustable and isolated
