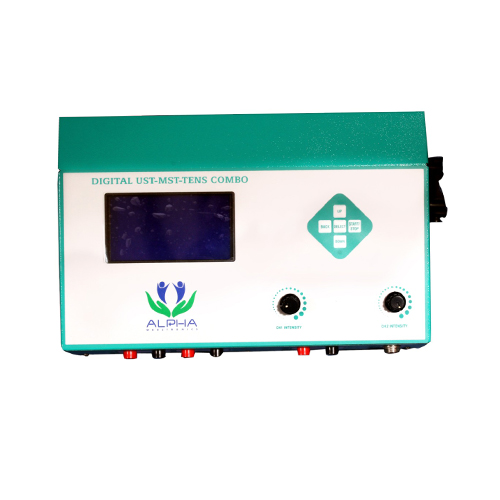

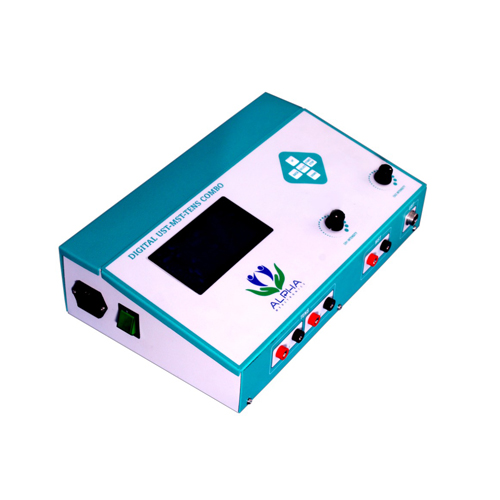

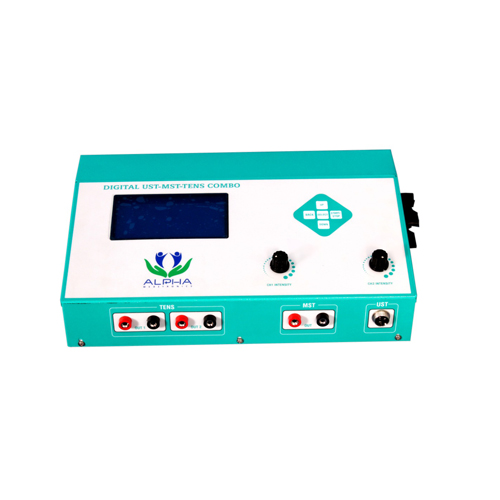

Digital UST-MST-TENS Combo
Digital UST-MST-TENS Combo - Image 2
Digital UST-MST-TENS Combo - Image 3
Digital UST-MST-TENS Combo - Image 4

Digital UST-MST-TENS Combo

To Buy
Download Brochure

Digital UST-MST-TENS Combo is a unique system for physiotherapy applications. Combines multiple therapies in one unit for efficient and reliable treatment.

FEATURES

  • Usage of two modalities with individual timer is possible
  • Feather-touch keypad
  • 225 therapeutic-library programs
  • Graphical LCD display (240 x 128)
  • SMPS powered
  • Individual ON-OFF control for all modalities
  • Cable check facility
  • 30 configurable Favorites memory location
  • Stand alone Start/Stop switch for output control
  • Equipped with “ARM” microcontroller
Category:

Description

Specifications

UST

Frequency 1 MHz
Mode Continuous & Pulse modes (1:1 to 1:16)
Power Output 0 to 3.1 W/cm²

MST

Modes FAR, SFAR, GAL, IG, U-Reiz, HVPC & Micro Current
FAR 0.7 ms ON time @ 20 ms period
SFAR HOLD & REST: 1 to 12 sec (adjustable)
GAL Plain DC
IG ON: 0.01 ms to 1000 ms, REST: 1 to 12 sec (adjustable)
U-Reiz 2 ms ON time @ 7 ms period
HVPC 10 Hz to 120 Hz with 10 Hz step
Micro Current 10 Hz to 1 kHz with 10 Hz step
Output 0–99 mA, adjustable

TENS

Mode Continuous & Burst
Frequency 1 to 250 Hz @ 10–400 µs pulse width (adjustable)
Burst HOLD & REST: 1–12 sec (adjustable)
Output 0–99 mA, adjustable and isolated
Timer 1–30 minutes, adjustable
Input Power SMPS @ 150–275V AC, 50 Hz
Dimensions 310 × 220 × 90 mm
Weight 2.6 kg

Related products

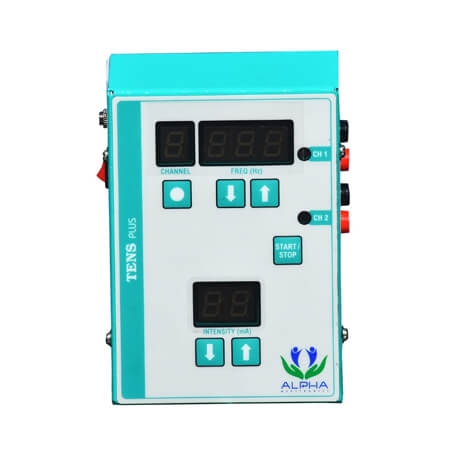

TENS PlusDigital IFT-MST-TENS Combo
